Standards : EN 445-NF P18-358,P18 507

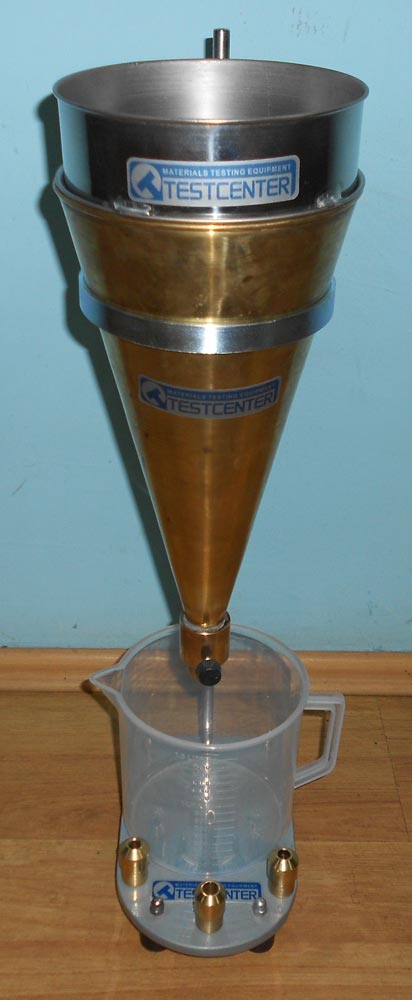

Flow cone is used for viscosity and fluidity determinations of mortars, muds, grouts, fluid materials, etc.
Mortar fluidity is considered suitable when the flow time of 1000 cc of mortar is comprised between 17 to 25 seconds.
It is entirely brass made and supplied complete with four interchangeable nozzles dia.8 -9 -10 -11 mm.
Stand an plastic graduated cup are given togather with the flow cone.
Cone top dia. is 155 mm, height 290 mm, Capacity 1700 gr.
Weight:10 Kg
