STANDARDS : TS 1900-2,ASTM D1883,D3668,BS 1377-4,1924,AASTHO T193

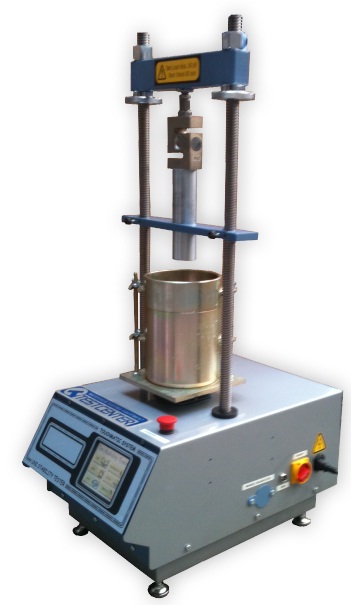

Machine frame was ruggedly constructed to measure load and deformation. It is designed to operate with the minimum of maintenance. Plates increasing rates are 1.27-1 mm/minute. There is engine protection against overloading. The applied load is measured by a precision load cell 50 kN capacity and max load flow are shown on the display.
Max movement and mound are controlled by safety switch .cylinder stroke while controlling stability measuring instrument and mound.
The unit is supplied complete with load cell 50 kN capacity and penetration piston.
Max. vertical span: 645 mm
Horizontal span: 275 mm.
Cylinder stroke: 60 mm.
Power: 220-240 V 1 ph 50 Hz 750 W
Dimensions: 520 x 550 x 1450 (h) mm.
Weight: 155 Kg
