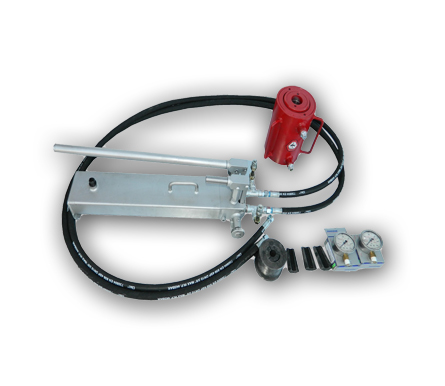

Pull Out Testing Apparatus
It is used for steel tests.
Single acting hydraulic cylinder hole spring return : 100 mm
Double and single acting hydraulic hand pump: 700 bar
Hydraulic Cyclone : 2 m 100 mm
Optional : Digital or mechanic manometer.
Single acting hydraulic cylinder hole spring return
Capacity: 25 Tons
Maximum working pressure: 700 Bar
Hole diameter of 26 mm
Stroke: 80 mm
Closed length. 170 mm
Outer diameter: 100 mm
Oil Volume 318 cm3
Weight: 7.78 kg
