STANDARDS : TS EN 1097-1,NF P18-572

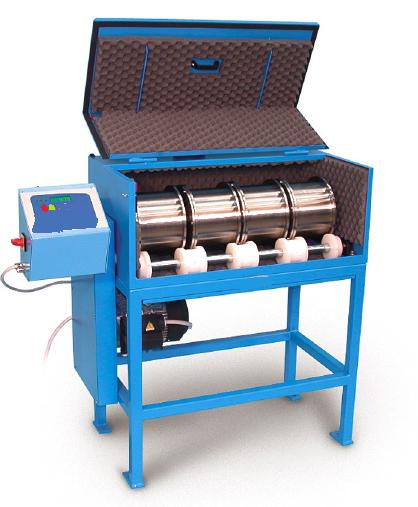

This machine is used to determine resistance of aggregates against abrasion.
The machine comprises durable steel frame on which four stainless steel cylinders dia. 200x154 mm are mounted.
Electric control panel consist of programmable 5 digit digital numerator with automatic start / stop button (According to the defined rotation number, machine stops automatically).
20 kg of stainless steel spheres dia. 10 mm is given with the machine
Power: 220 V, 50 Hz, single phase, 750 W.
Dimensions: 1500 x 500 x 650 (h) mm.
Weight: 140 kg.
