STANDARTS : TS EN 12390-8,EN 12364,DIN 1048,ISO 7031

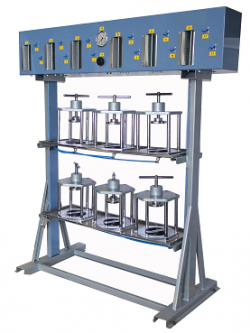

Apparatus at 3or 6 points to determine the depth of penetration of the water into the concrete (impermeability) under known time and pressure The unit accepts up to 6 concrete cubic, cylindrical or prismatic specimens having max. dimensions of 200x200x200 mm The specimen is put into the test chamber, clamped with suitable flanges and gaskets, and then a known water pressure is applied on the specimen’s surface for a time as requested by Standard, by using a suitable air compressor (accessory) having at least 5 or 20 bar pressure capacity The water penetrated is measured by breaking the specimen, or by reading the water permeated through the graduated burette fixed on the front panel
Dimension : 1770 x 750 x 1920 mm
Weight :180 kg (app.)
