STANDARDS : EN 196-1,413-2,459-2,BS 3892,ISO 679

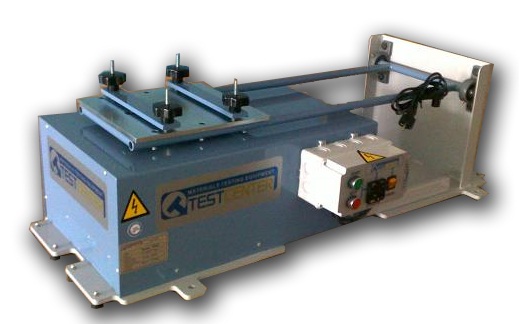

Used to compact cement mortar prisms 40x40x160 mm in the three gang mould, as requested by the above Specifications. The apparatus, consists of a table holding the mould, seated on a rotating cam driven at 60 revolutions per minute. The jolting group is connected to the table by bayonet joints for quick checking of the weights. The drop height 15,0 mm is adjustable to keep it correct also after intensive uses. The apparatus is supplied with control panel including main switch, automatic digital drop counter, start/stop push buton
Power: 220-240 V, 1 faz, 50 Hz, 500 W
Dimensions: 1000 x 380 x 420 mm
Weight: 60 kg
